High Frequency Welding Aluminum Alloy Doors And Window Bending Machine Spacer Bar 5.5-24 Mm

Name: High Frequency Welding Aluminum Alloy Doors And Window Bending Machine Spacer Bar 5524 Mm
Brand: Jinan Lijiang Glass Machinery
Price: 1 USD

Brand Name : Jinan Lijiang Glass Machinery

Model Number : LJZW2020 insulating glass spacer bending machine

Certification : CE & ISO9000

Place of Origin : Jinan City, Shandong Province, China

MOQ : 1 set

Price : Negotiated Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 5-8 working days

Packaging Details : Wooden Cases Package

Name : Insulating Glass Aluminum Spacer Bending Machine

Dimension : 10500mm*2200mm*2600mm

Max.bending size : 2500mm*2000mm

Aluminum spacer width : 5.5-24mm

Dimensional error : ≤±0.1mm

Processing speed : ≤26s

Air supply : ≥0.65MPa

Total power : AC220/380V 50Hz 2.5Kw

Contact Now

High Frequency Welding Aluminum Spacer Bar 5.5-24 mm Aluminum Alloy Doors and Window Bending Machine for Glass Processing

Product Description

High Frequency Welding Aluminum Alloy Doors And Window Bending Machine Spacer Bar 5.5-24 Mm

LJZW2020 Automatic Aluminum Spacer Bar Bending Machine

Jinan LIJIANG Glass Automatic Spacer Bar Bending Machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. Automatic spacer bending machine can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.

Specification

Item.	Spec.
Max.bending size	2000mm2000mm (2500mm2500mm)
Min.bending size	250mm*200mm
Aluminum spacer width	5.5-27mm
Dimensional error	±0.5mm
Angle error	±1º
Processing speed	≤26s
Air supply	≥0.65MPa
Total power	AC220/380V 50Hz 2.5KW
Dimension	10500mm2200mm2600mm

NAME	BRAND	NAME	BRAND
PLC	GERMAN SIEMENS	Triplet	Taiwan AIRTAC
Low voltage electrical apparatus	GERMAN SIEMENS	Cylinder	Taiwan AIRTAC
Servo motor	GERMAN SIEMENS	Solenoid valve	Taiwan AIRTAC
Servo driver	GERMAN SIEMENS	Switch power	Taiwan TEND
Relay	JAPAN OMRON	TOUCH SCREEN	Taiwan WEINVIEW
Sensor	KOREA AUTONICS	GUIDE	Taiwan TBI

Product picture display

Benefits & Advantages

•Siemens 1200 PLC control system with fast working speed

•4 groups of storages (2 or 12 groups of storages can be optional)

•Automatically cut and feed aluminum spacers

•Automatically avoid the pins while bending and cutting

•Bend spacer frames continuously

•Aluminum spacers are available in sizes of 6A-27A

•Different bending tools for different sizes of spacers

•Pause and Reset device for handling equipment failures •Bend aluminum spacer, smooth stainless steel, warm spacer

•Connect to ERP system (Optional)

•USB input function, read the excel format file directly

•Automatically drill holes for filling argon gas (Optional)

•Spacer printing code function (Optional)

•Printing label sticker function (Optional)

•Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)

The Unique ID Codes

All equipment spare parts have ID codes, which are matched with the ERP system of Lijiang Spare Parts Warehouse. When there is an after-sales problem, the defective spare parts can be found directly and replaced quickly.

The Printing Labels and Stickers

The spacer bending machine is equipped with the function of printing labels and stickers (optional), which can be easily removed, which is convenient for mass production of bending aluminum strips.

The Accurate Bending Effect

The corner error of the Aluminum Spacer Bar Bending Machine is less than 0.1mm, ensuring that it meets the practical application requirements of the hollow glass aluminum strip interval.

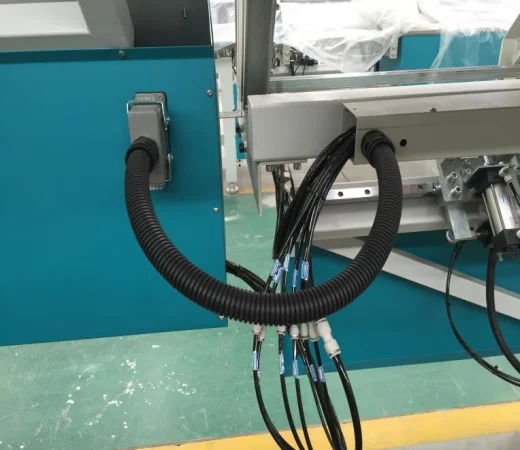

The Safety Components

The heavy-duty connector part of the aluminum spacer bar bending machine, the electrical wiring is clearly and orderly marked, and the installation and debugging are convenient and safe.
