Automatic Glass Washing And Drying Machine Adjustable Temperature And Conveying Speed

Brand Name : Jinan Lijiang Glass Machinery

Model Number : KTCP-2500A Glass Washing Machine

Certification : CE & ISO9000

Place of Origin : Jinan City, Shandong Province, China

MOQ : 1 set

Price : Negotiated Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 5-8 working days

Packaging Details : Wooden Cases Package

Product name : Glass washing machine

Glass thickness : 3mm-25mm

Max glass size : 2500mm

Min glass size : 400mm*400mm

Table height : 900±25mm

Washing speed : glass thickness within 3-19mm Vmax=1--12m/min

Function 1 : New type of Air knife drying

Function 2 : Solid rubber roller

Contact Now

Auotmatic Adjustable Temperature and Conveying Speed Glass Washing and Drying Machine with Hot Press and Heat Sealing Function
Product Description
Automatic Glass Washing And Drying Machine Adjustable Temperature And Conveying Speed

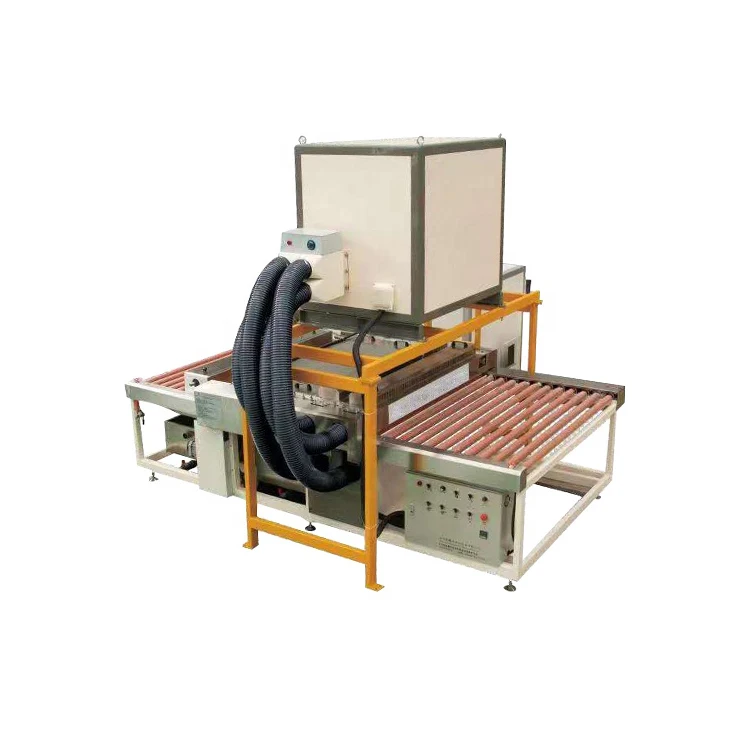

Automatic Horizontal Glass Washing and Drying Machine
Jinan LIJIANG Horizontal Glass Washing and Drying Machine LJWBQJ1800-A used for cleaning and drying the upper and lower surfaces of ordinary float glass and high quality low-e glass, it is composed of incoming segment, cleaning air-drying segment and out goingsegment.This Ecnomic type washer always useing for sigle glass or insulating galss processing of window and door filed.
Automatic Glass Washing And Drying Machine Adjustable Temperature And Conveying Speed
Automatic Glass Washing And Drying Machine Adjustable Temperature And Conveying Speed
Advantages & Features
Automatic Glass Washing And Drying Machine Adjustable Temperature And Conveying Speed
Automatic Glass Washing And Drying Machine Adjustable Temperature And Conveying Speed
Automatic Glass Washing And Drying Machine Adjustable Temperature And Conveying Speed
Automatic Glass Washing And Drying Machine Adjustable Temperature And Conveying Speed
Automatic Glass Washing And Drying Machine Adjustable Temperature And Conveying Speed
Automatic Glass Washing And Drying Machine Adjustable Temperature And Conveying Speed
Automatic Glass Washing And Drying Machine Adjustable Temperature And Conveying Speed

Structural Characteristics
1. Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency;
2. The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder;
3. The rubber roller is made of vulcanized rubber with stainless steel shaft;
4. The washing part in contact with water is made of stainless steel;
5. Cleaning department, wind staff overall lift, the maximum lift:350mm,easy to clean and maintain;
6. Three pairs of brush(Ø150mm)Stainless steel shaftconfiguration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface);
7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing);
8. The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,The whole fan box is installed in the upper part of the workshop, with the air filter screen on the side for easy inspection and cleaning;
9. Main drive for gear transmission, frequency control, digital display, the rotation of the brush roller in the washing section is driven by independent belts of the upper and lower motors respectively, the frequency conversion adjustment speed is stable, the service life is long, realizes the cleaning high request special glass;
10. Mechanical button control, cleaning machine digital display, easy to operate, easy to operate, easy to maintain;
11. Washing machine water tank outside, convenient water tank cleaning, water change, check, so that the washing machine cleaning effect is cleaner.
12. Optional with PLC control, touch screen display.It is convenient for workers to operate and maintain, and can be connected to all manufacturers of edge grinding machines without gap.(purchase separately if necessary)
Automatic Glass Washing And Drying Machine Adjustable Temperature And Conveying Speed

The Imported Components
Using imported frequency converter and PLC control system, the speed of entering and exiting the glass can be adjusted freely, and the processing of clear glass can be maintained at a constant speed for a long time.
Automatic Glass Washing And Drying Machine Adjustable Temperature And Conveying Speed

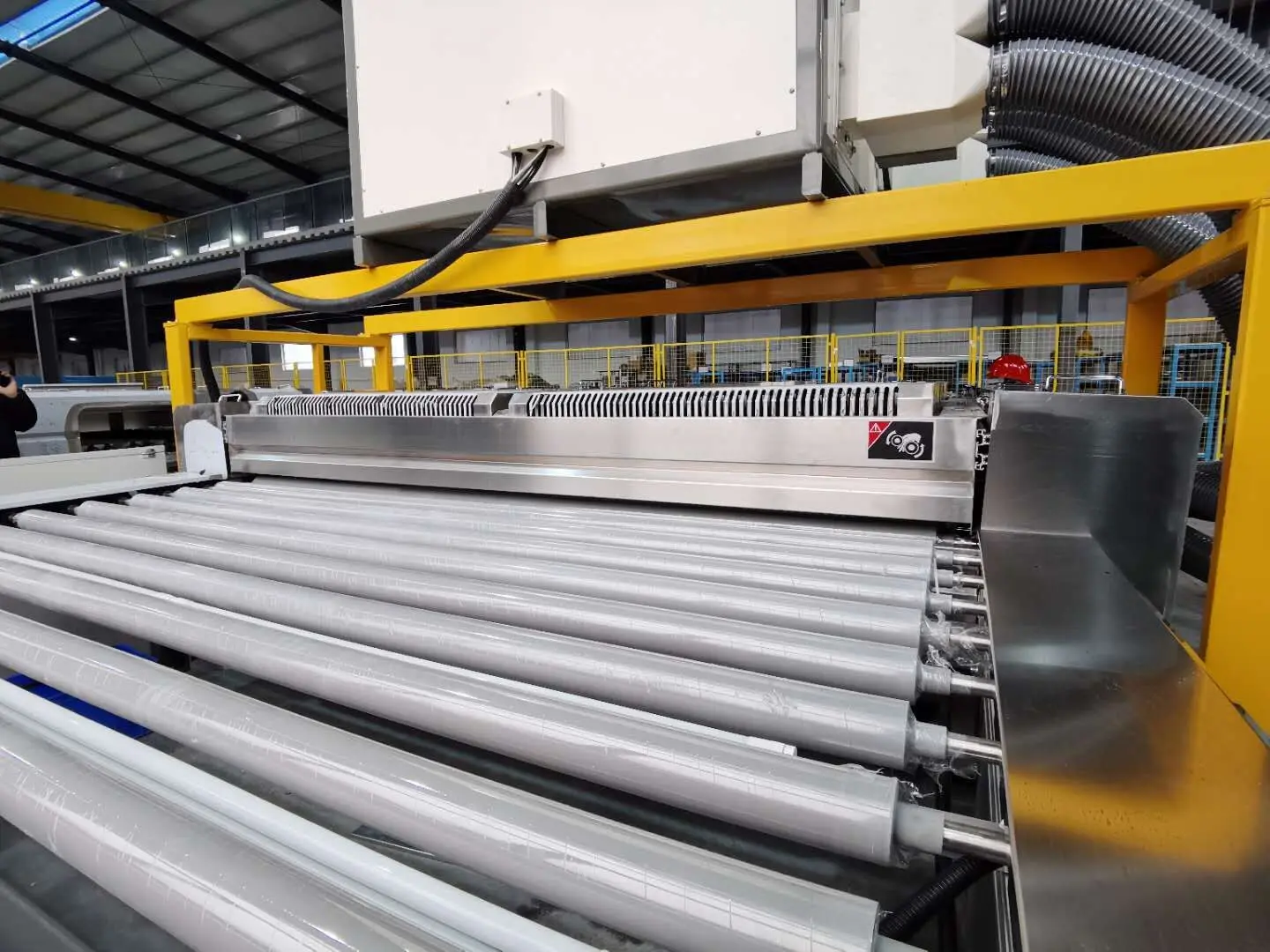

The 3 Pairs of Rubber Rollers
3 pairs of rubber rollers are used to press the glass sheets, which can achieve the effect of increasing the pressing strength in sequence, and the glass thickness tolerance is smaller than others suppliers.
Automatic Glass Washing And Drying Machine Adjustable Temperature And Conveying Speed

The High-power Fan
The washing and drying equipment could be equipped with a high-power fan, the drying effect is better, and the cleaning effect of the glass is fully guaranteed.
Automatic Glass Washing And Drying Machine Adjustable Temperature And Conveying Speed

The Gradient Pressing Method
According to the direction from the glass input to the output, the glass is gradually pressed by using a gradient pressing method.The pressing effect is better than other suppliers.
Specification
Item.
Spec.
Maximum glass width
2500mm (effective maximum: 2650mm)
Minimum glass specification
400mm×400mm (limited to single row on left and right sides)
Glass thickness
3mm-25mm (digital display)
Speed range
glass thickness within 3-25mm Vmax=1-12m/min
Main drive, brush speed regulation method
frequency control
Table height
900±25mm
Total power
42KW(water-bearing wind heating: 15KW)
Water source
self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment
shall be provided by the buyer)
Power source
380V 50Hz
Dimensions (length × width × height)
approximately 6260*4800*3100mm
Weight
3940kgs
